A type of standard transparent LED screen with standard dimension, which widely used in conventional glass windows.

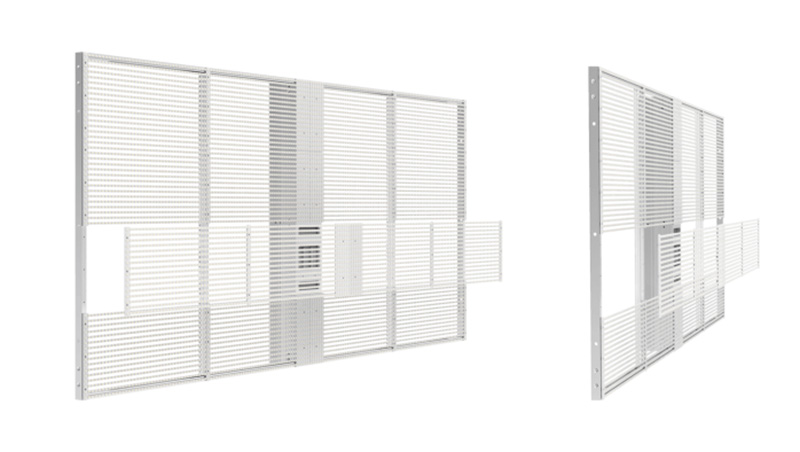

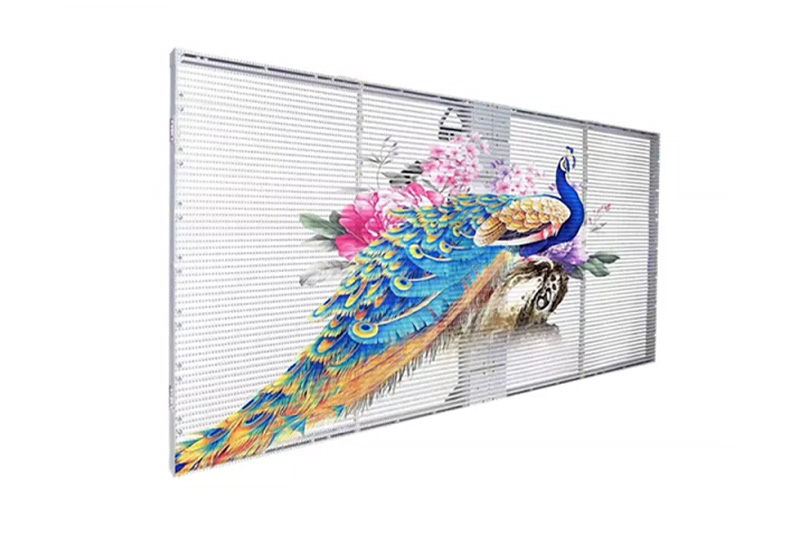

LOSCEN”ATS Series” is a standard size product developed by LOSCEN for the transparent screen window application environment.The series includes two styles: “Front-mounted cabinet” and “Side-emitting cabinet”

HD, HIGH TRANSPARENCY & HIGH BRIGHTNESS

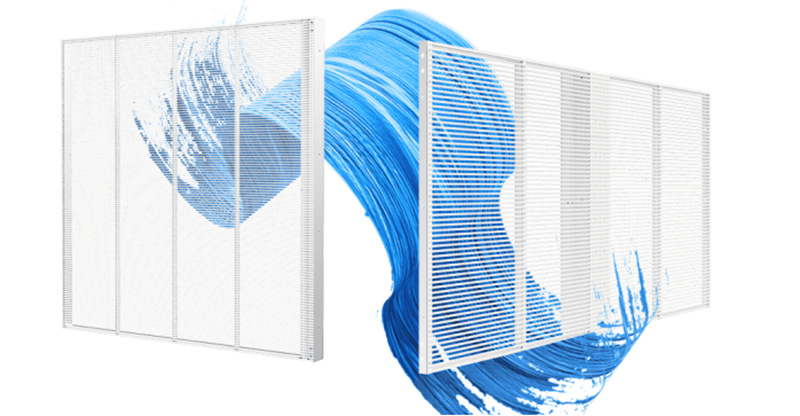

The minimum pixel pitch canbe 2.6mm, and the picture is high-definition and delicate;When using side-emitting display technology, the transparency canreach more than 70%;Does not affect lighting and sight;5000 nits highlight, still clearly visible under strong light;

ULTRA-THIN STANDARDIZED DESIGN

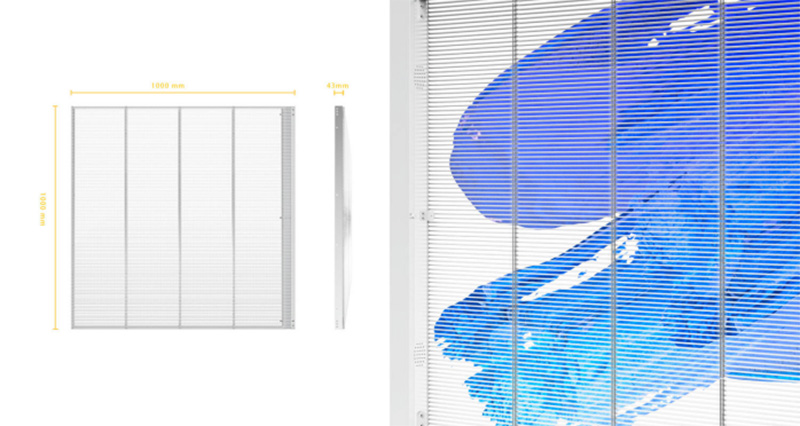

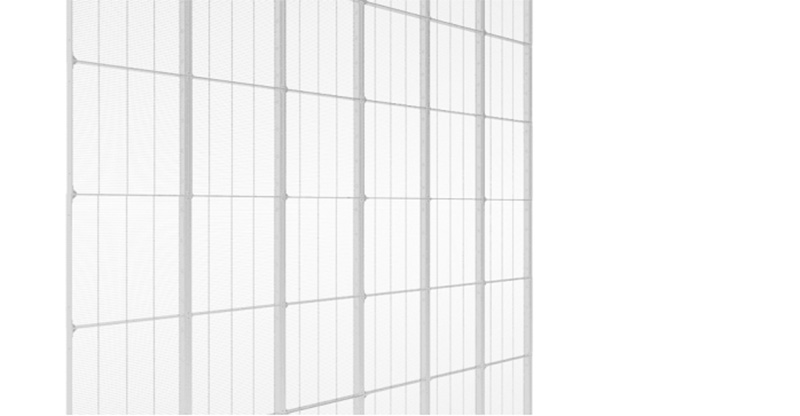

Standard cabinet design, simple and generous appearance, can quickly and seamlessly splice any large screen size;Ultra-thin transparent screen box, the thickness is only 50mm, and the thinnest part of the edge is only 43mm;

EASY TO INSTALL & MAINTAIN

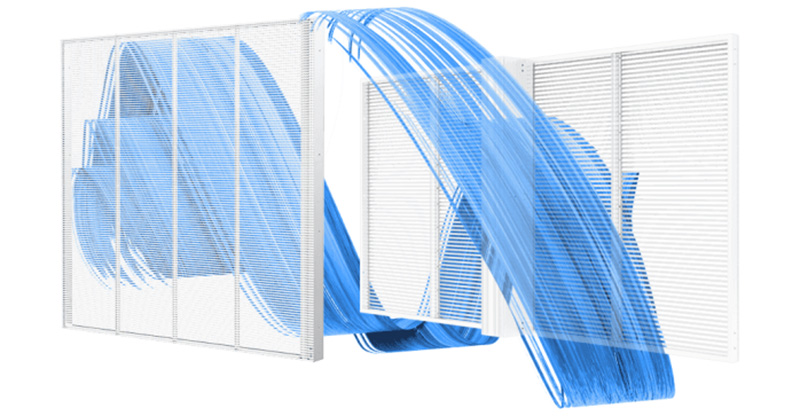

Pluggable design of network cable and power cord, quick connection operation; Modular design, modules and LED strip can be disassembled independently, greatly reducing maintenance costs:

INTELLIGENT CLUSTER CONTROL
Cloud platform cluster intelligent control, remote program release, fast update anytime, anywhere:Real-time monitoring of screen play back status, intelligent fault perception, and automatic fixed-point reporting:
WIDE APPLICATION
> Banks, telecommunications halls;
> Real estate sales center;
> 4S shop;
> Chain store;
> Showroom;

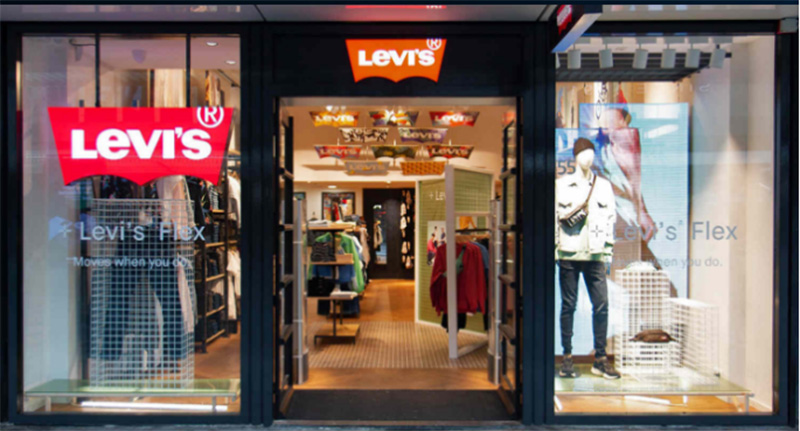

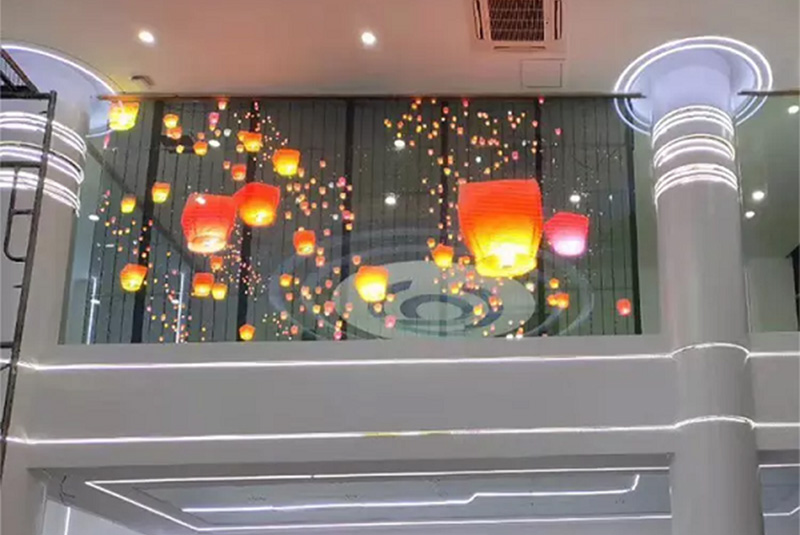

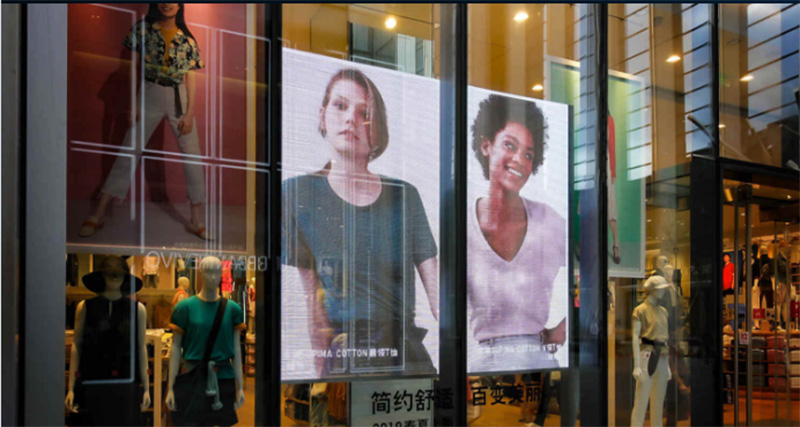

Case sharing:

| ITEM | ATS-2.6(FRONT
EMITTING) |
ATS-2.8(FRONT
EMITTING) |
ATS-3(FRONT
EMITTING) |
ATS-3(SIDEE
MITTING) |
ATS-7(SIDE
EMITTING) |
ATS-10(SIDE
EMITTING) |
| PIXEL PITCH | 2.6-5.2mm | 2.8-5.6mm | 3.9-7.8mm | 3.9-7.8mm | 7.8mm | 10mm |
| INTENSITY | 73728 dots/m² | 63546 dots/m² | 32768 dots/m² | 32769 dots/m² | 16384 dots/m² | 10000 dots/m² |
| CABINET SIZE | 1000*500mm | 1000*500mm | 1000*500mm | 1000*1000mm | 1000*1000mm | 1000*1000mm |
| CABINET MATERIALS | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| WEIGHT | 9.5kg/㎡ | 9.5kg/㎡ | 9.5kg/㎡ | 9.5kg/㎡ | 9.5kg/㎡ | 9.5kg/㎡ |
| BRIGHTNESS | 4500nit | 4500nit | 4500nit | 5000nit | 5000nit | 5000nit |
| TRANSPARENCY | 50% | 55% | 60% | 70% | 75% | 80% |
| REFRESH RATE | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz | ≥3840Hz |
| MAX. POWER | 800W/㎡ | 800W/㎡ | 800W/㎡ | 800W/㎡ | 800W/㎡ | 800W/㎡ |
| AVE. POWER | 200W/㎡ | 200W/㎡ | 200W/㎡ | 260W/㎡ | 260W/㎡ | 260W/㎡ |
| VIEWING ANGLE | 140° | 140° | 140° | 140° | 140° | 140° |
| INPUTVOLTAGE | AC85-240V | AC85-240V | AC85-240V | AC85-240V | AC85-240V | AC85-240V |
| LIFETIME | 100000H | 100000H | 100000H | 100000H | 100000H | 100000H |
